SERVICING AND REPAIRS WARNING – Servicing and product repairs should only be undertaken by the manufacturers approved service agent or a similarly trained or qualified person, using only exact manufacturer approved spare parts. |
Blocked Terminal

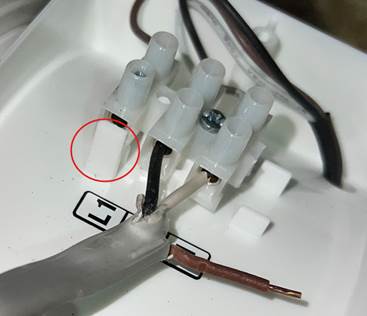

The terminal block in the XIMX100, has one terminal that is obstructed by part of the plastic casing, leaving only the L2 and Neutral connections available (max. speed) which is the factory default. This is so that there is no chance of incorrectly wiring the product in the default configuration.

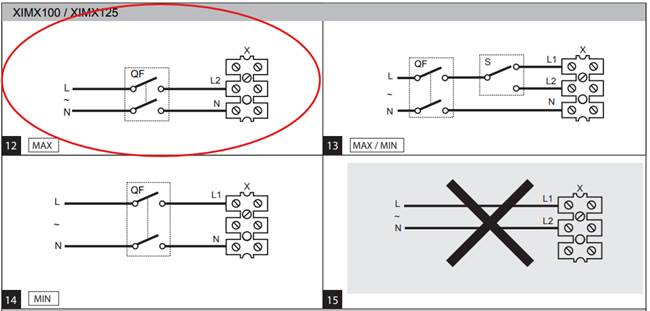

Alternative Wiring Configuration
Should a different wiring configuration be required, the plastic tab can be removed/cut in order to access the terminal.
Applicable Model
XIMX100, XIMX125
